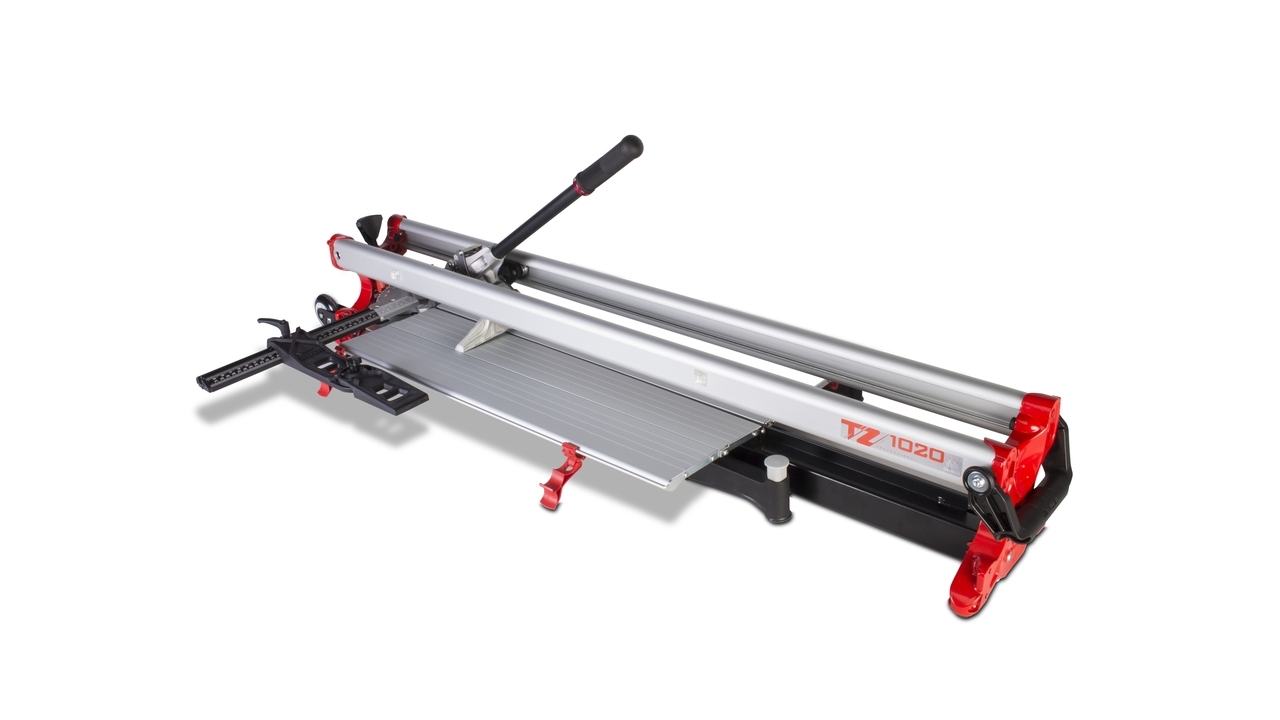

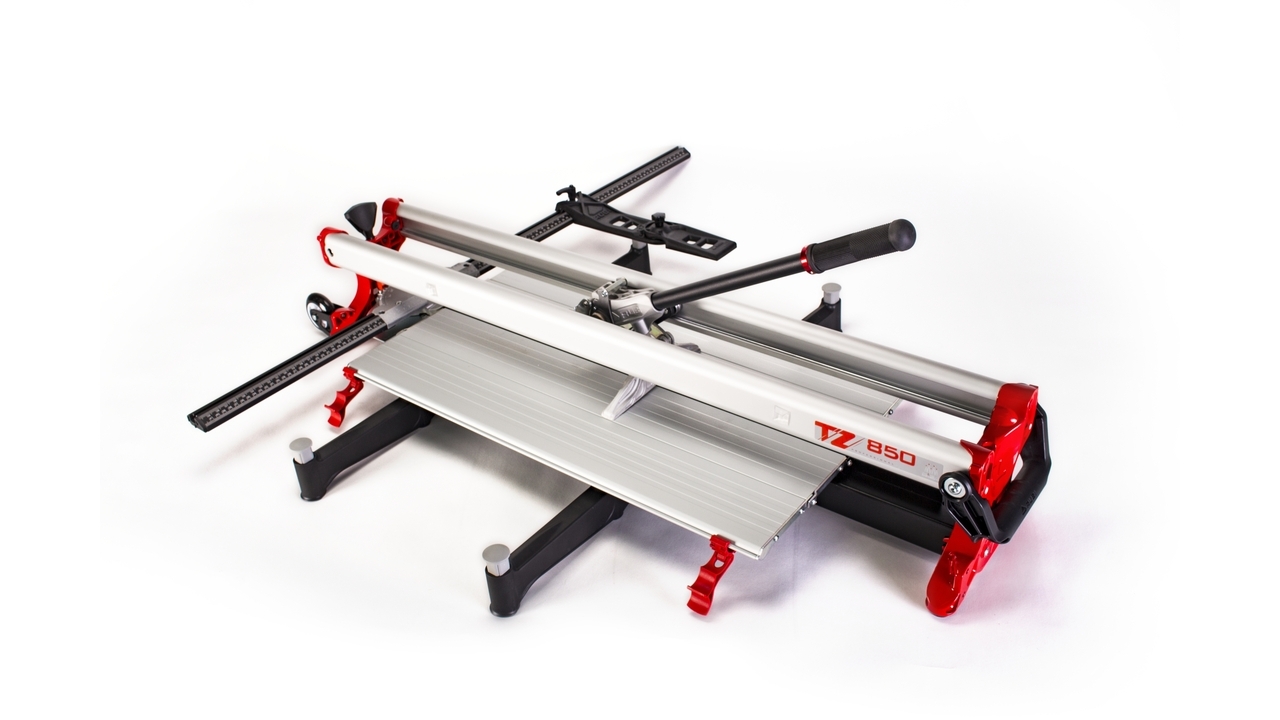

With a combination of latest generation materials and innovative design, the RUBI TZ is the most advanced manual cutter of ceramic tiles on the market.

Features:

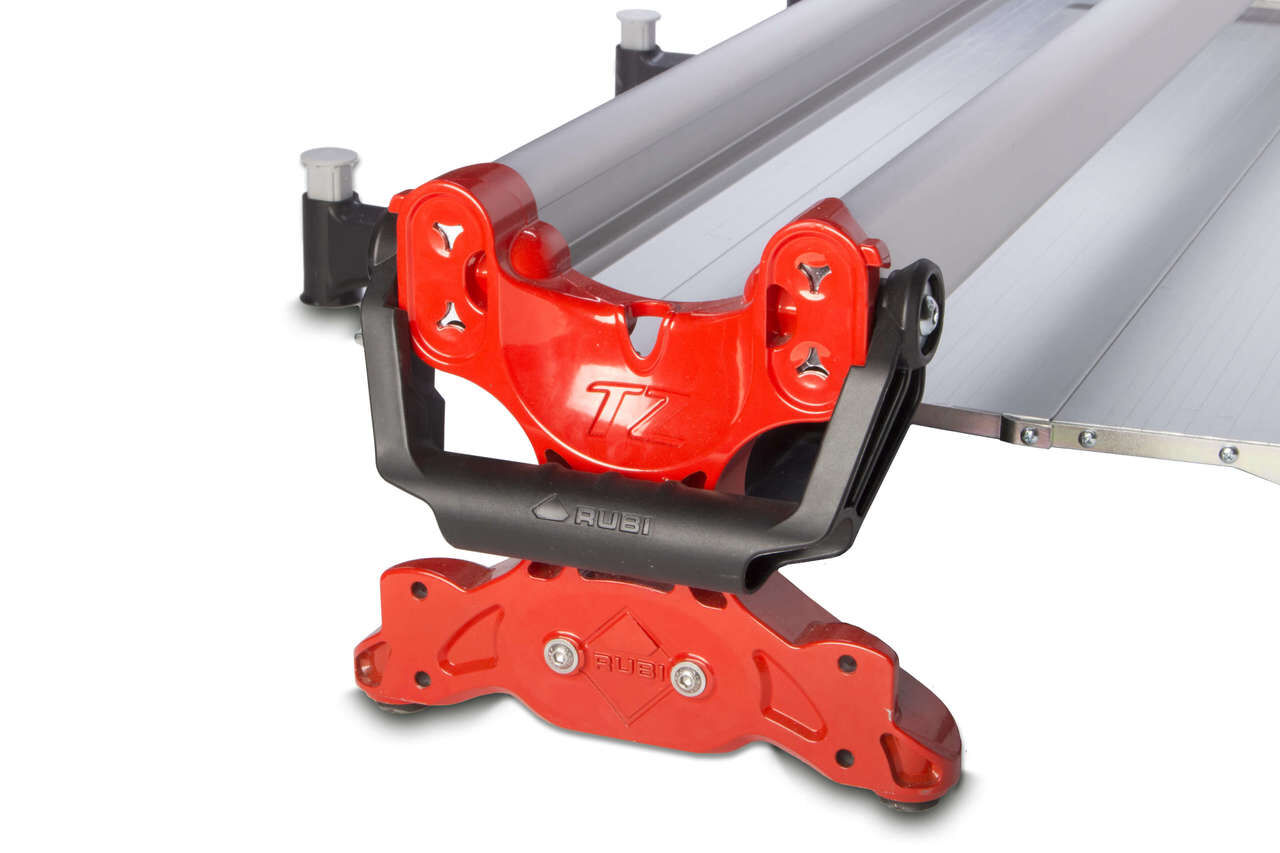

  • 1500 kg maximum power and breaker mechanism, exclusive and patented, allows the professional tiler to operate the cutter with one hand, facilitating work with large format ceramic tile.
  • Provides smooth and accurate scoring
  • Along with the guides, the steel frame of the TZ allows manual cutting, a bending resistance and strength never before seen in a ceramic tile manual cutter
  • Specifically designed to work with large format tiles. Available in 4 different models, the TZ is compatible with formats of up to 155 cm (straight cut) or 110x110 cm diagonally
  • Allows pieces to be cut up to 21 mm thick*, with the ability to adjust the working position and adjust the machine performance according to the thickness of the material

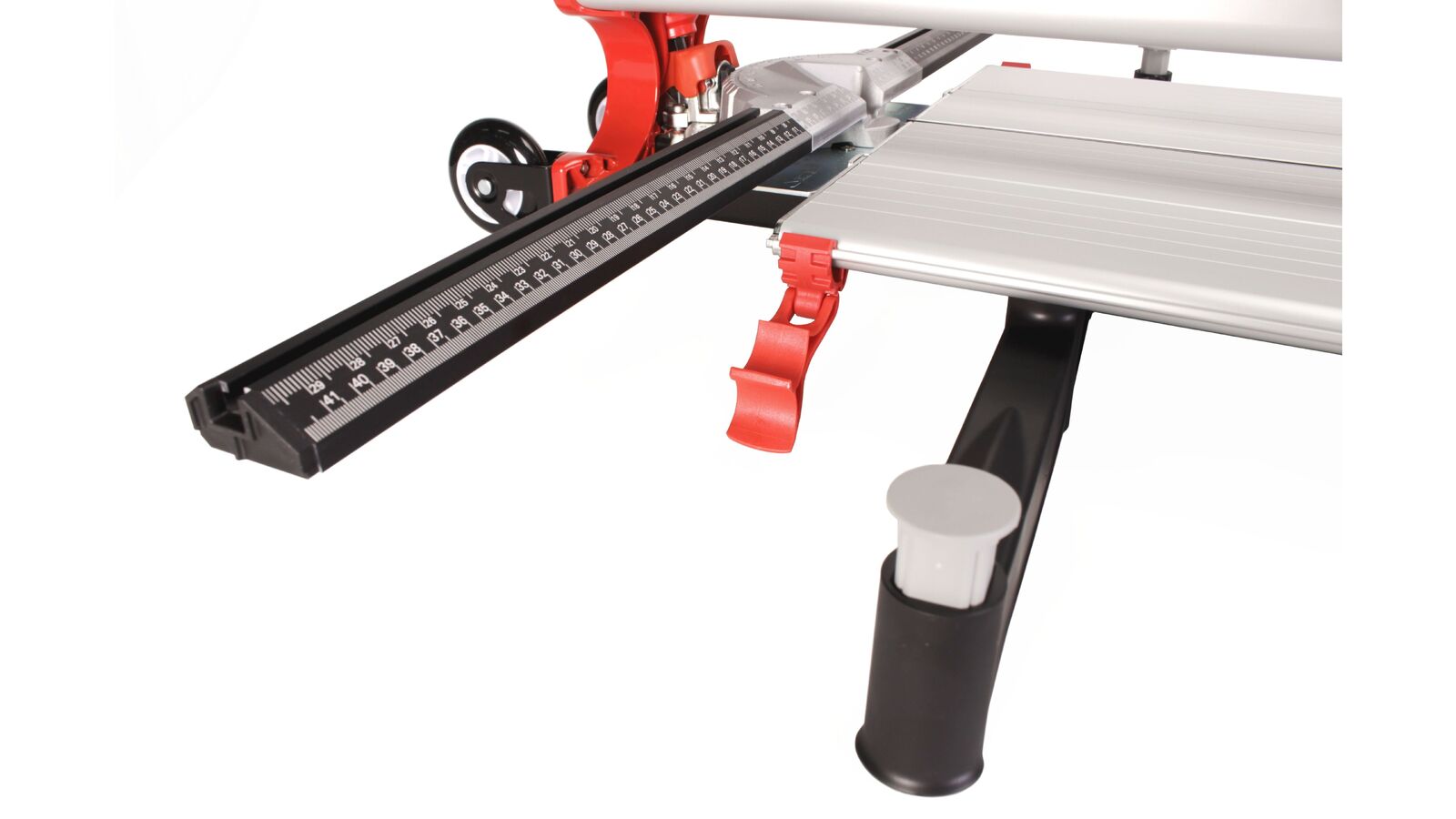

  • The swivel bracket with removable ends and the locking system ensure precise cuts and facilitate the performance of angular cuts. The patented 30 cm long lateral stop offers a large surface for performing repetitive cuts in large pieces

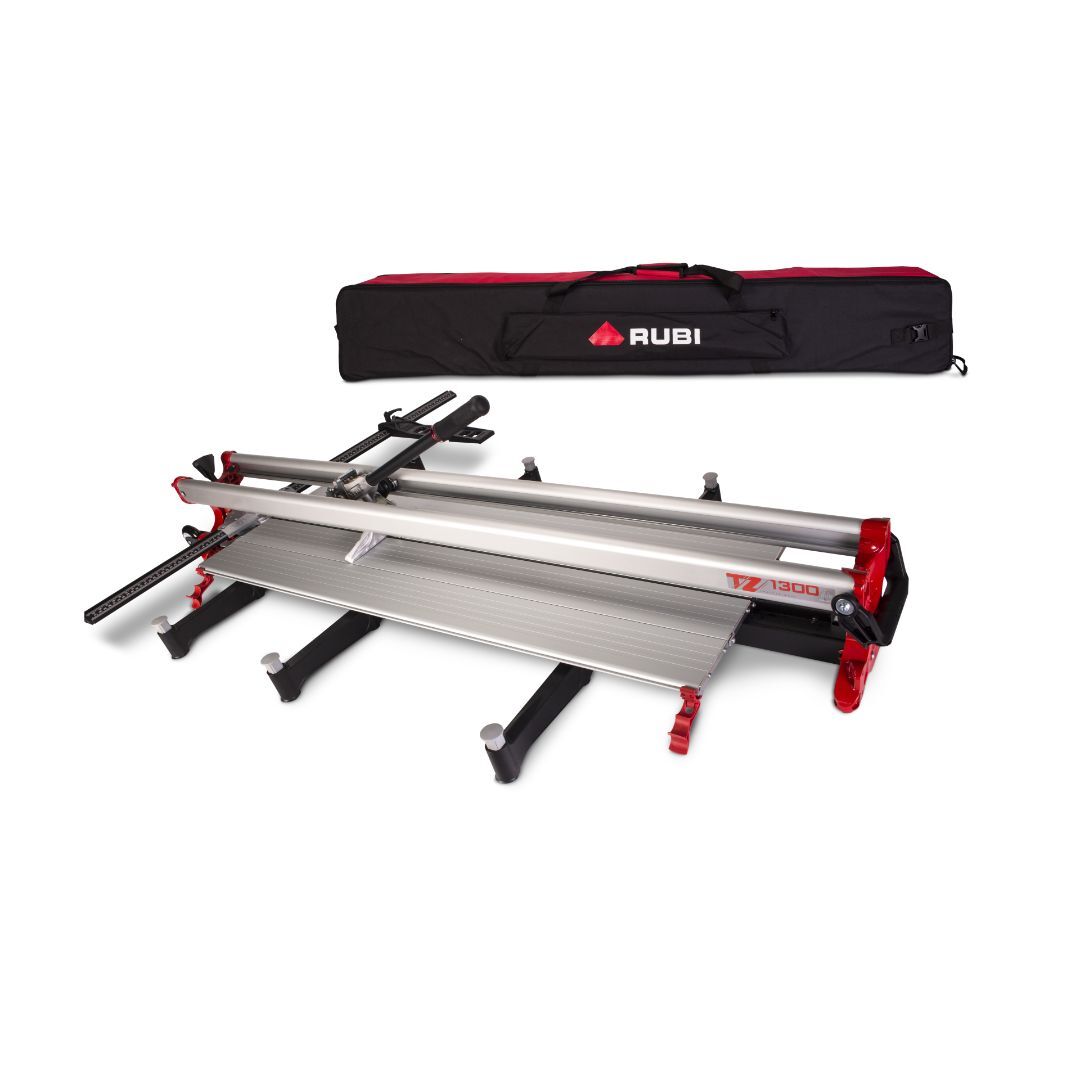

  • Equipped with wheels and carrying handles to facilitate their portability in the workplace and a highly strengthened textile bag to transport and protect it
  • Compatible with the full range of RUBI PLUS scoring wheels and are supplied with a 8mm and a 22mm PLUS Extreme scoring wheel.

* There are some ceramic materials over 15 mm thick which, due to their physical properties, possible inner or surface tensions, are difficult to cut manually. It is recommended to make some sample cuts to determine the compatibility of the product.

Specifications:

  • Max Cutting Thickness: 21*mm
  • Max Tile Diagonal Cutting Length: 600mm x 600mm
  • Adjustable Diagonal Cutting Arm: No
  • Compatible with scoring wheels Ref 1959 (8mm), 1991 (10mm), 1992 (18mm), 1900 (22mm)
SKU 179500
Brand Rubi
Shipping Weight 0.0111kg
